Generate Application Log

By | October 2, 2008 | Application Log | 30,489 | 17

Application log is used to generate a log which can be accessed later by the users. Sometimes there would be a situation where we need to generate the log, especially for the Errorenous situation.

Background

Application Log is the rich type log. It contains the information like User, Time, Expiry date of the log. It has also traffic icons for the messages based on the message type.

Log is also getting generated when we run the report in the Background. This is called as the Job Log. But it doesn’t have the same formatting as the Application Log. It will also not get generated when you run the report online. So, if we have to generate the Log in the both scenario than we have to use the Application Log.

Important Tcodes:

These are the important transaction codes used for Application Log:

  • SLG0 – Create a new Log Object and subobject
  • SLG1 – Display Application Log
  • SLG2 – Delete the Application Log

Code Snippet

To start generating the custom Application Log than we need to create a new Log object and Subobject. Use the Tcode SLG0 and create a new custom Application Log object.

So, let’s see the code snippet to generate the Application Log.

*&---------------------------------------------------------------------*
*& This code snippet will show how to generate the Application log
*&   by using some function modules
*&
*&---------------------------------------------------------------------*
*
DATAlf_obj        TYPE balobj_d,
      lf_subobj     TYPE balsubobj,
      ls_header     TYPE balhdri,
      lf_log_handle TYPE balloghndl,
      lf_log_number TYPE balognr,
      lt_msg        TYPE balmi_tab,
      ls_msg        TYPE balmi,
      lt_lognum     TYPE TABLE OF balnri,
      ls_lognum     TYPE balnri.
*
* Application Log object & Subobject
  lf_obj     'ZTEST_NP'.
  lf_subobj  'ZTEST_1'.
*
* Header information for the log
  ls_header-object     lf_obj.
  ls_header-subobject  lf_subobj.
  ls_header-aldate     sy-datum.
  ls_header-altime     sy-uzeit.
  ls_header-aluser     sy-uname.
  ls_header-aldate_del sy-datum + 1.
*
* Get the Log handle using the header
  CALL FUNCTION 'APPL_LOG_WRITE_HEADER'
    EXPORTING
      header              ls_header
    IMPORTING
      e_log_handle        lf_log_handle
    EXCEPTIONS
      object_not_found    1
      subobject_not_found 2
      error               3
      OTHERS              4.
  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
            WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ENDIF.
*
* Get the next avaliable Log number
  CALL FUNCTION 'BAL_DB_LOGNUMBER_GET'
    EXPORTING
      i_client                 sy-mandt
      i_log_handle             lf_log_handle
    IMPORTING
      e_lognumber              lf_log_number
    EXCEPTIONS
      log_not_found            1
      lognumber_already_exists 2
      numbering_error          3
      OTHERS                   4.
*
* Fill the Application Log messages.
*   Here we can append our own messages as per our application
*   behaviour
*
* Information message will generate the Green Light
  ls_msg-msgty 'I'.
  ls_msg-msgid '00'.
  ls_msg-msgno '398'.
  ls_msg-msgv1 'Testing 1234'.
  APPEND ls_msg TO lt_msg.
*
* Warning message will generate the Yellow light
  ls_msg-msgty 'W'.
  ls_msg-msgid '00'.
  ls_msg-msgno '398'.
  ls_msg-msgv1 'Warning Testing 1234'.
  APPEND ls_msg TO lt_msg.
*
* Error message will generate the Red Light
  ls_msg-msgty 'E'.
  ls_msg-msgid '00'.
  ls_msg-msgno '398'.
  ls_msg-msgv1 'Error Testing 1234'.
  APPEND ls_msg TO lt_msg.
*
* Write the Log mesages to the memory
  CALL FUNCTION 'APPL_LOG_WRITE_MESSAGES'
    EXPORTING
      object              lf_obj
      subobject           lf_subobj
      log_handle          lf_log_handle
    TABLES
      messages            lt_msg
    EXCEPTIONS
      object_not_found    1
      subobject_not_found 2
      OTHERS              3.
  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
            WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ENDIF.
*
* write the log message to Database which can be later analyzed
*   from transaction SLG1
  MOVE-CORRESPONDING ls_header TO ls_lognum.
  ls_lognum-lognumber lf_log_number.
  APPEND ls_lognum TO lt_lognum.
*
  CALL FUNCTION 'APPL_LOG_WRITE_DB'
    EXPORTING
      object                lf_obj
      subobject             lf_subobj
      log_handle            lf_log_handle
    TABLES
      object_with_lognumber lt_lognum
    EXCEPTIONS
      object_not_found      1
      subobject_not_found   2
      internal_error        3
      OTHERS                4.
  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
            WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ENDIF.
*
* display the generate log from the memory.
  CALL FUNCTION 'BAL_DSP_LOG_DISPLAY'.

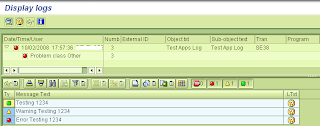

The generated application Log will look like this:

TIP

When we generate the some type of application log in the background job, we would like to set the appropriate job status based on the messages in the log table. For example, if the Application log has any error we want to set the status of the job as the “Cancelled”. To achieve this, we have to add this type of code after we append our log to database using the FM APPL_LOG_WRITE_DB:

*&---------------------------------------------------------------------*
*& This code snippet will show how to set the status of the background
*&   job if the application log has been generated in the background.
*&---------------------------------------------------------------------*
  read table lt_msg into la_msg with key msgty 'E'.
  if sy-subrc 0.
    message e398(00with 'Some error occured. Application Log'
                          'has generated. Check in tcode SLG1'.
  endif.

You can find more about the Application Log in SAP Library at: Application Log

When to use Application Log?

One of the reader has asked this question: When to use Application Log?. Application Log Should be used for these situations:

  • When we want to save the List/Log for the long time: Generally, we have the spool retention preiod of 8 days. So, the list or log will be deleted automatically.
  • When we want more information compared to Log generated with WRITE: Application Log has more information like User, date of creation, Severarity of the message.
  • In ALE / EDI Processing: When we do the cross client processing (IDoc Processing), we can generate the Application log to keep track of the generated errors or the messages.

UPDATE

The FMs used here to generate Application Log are replaced by new set of FMs. Check out the New FMs to generate Application Log.
